Studio Grade Production – Simplified!

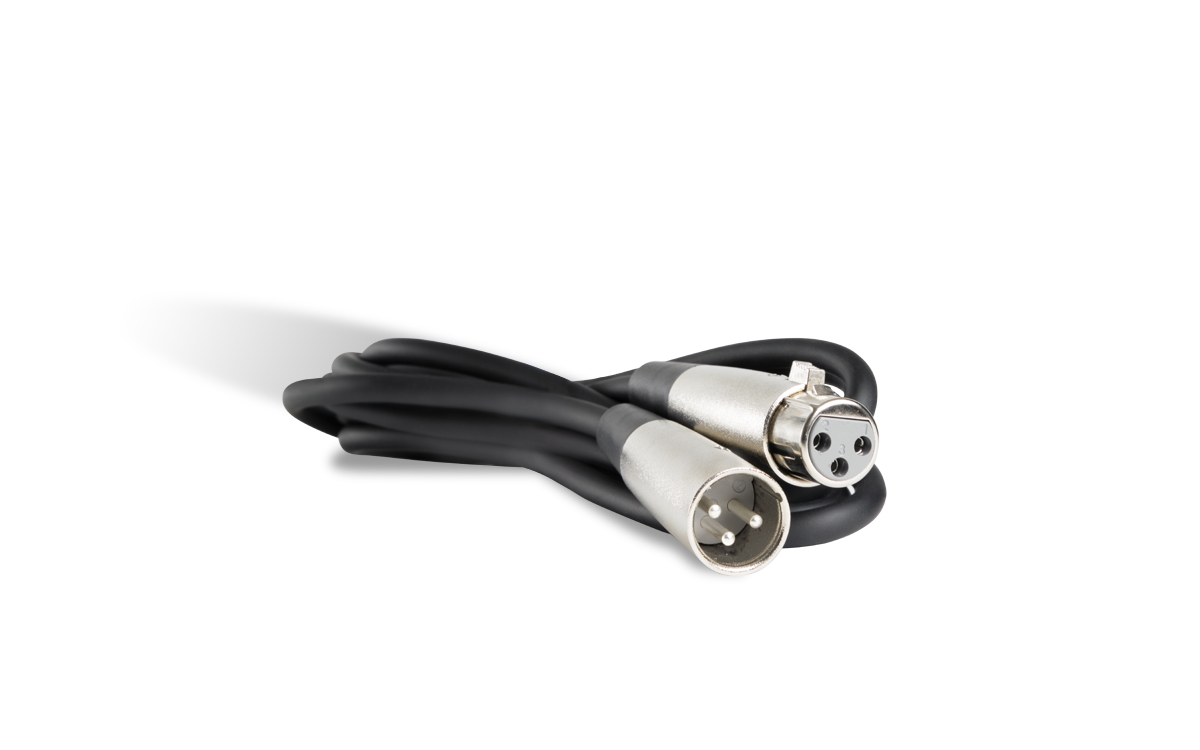

Enter the world of studio-based recording with the M-Track 2X2 Vocal Studio Pro—the ultimate all-in-one solution for computer recording projects. Combining the critically acclaimed M-Track 2X2 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium C-Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the M-Track 2X2 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.

More Than Just an Interface

This is the creative center of your recording setup: simple-to-use, style-infused M-Track 2X2 C-Series audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the M-Track C-Series 2X2 enables you to record two channels simultaneously. The versatility of a combo input accommodates any source audio with a microphone or line-level output while a tailor-made gain and impedance stage on the conveniently located instrument input guarantees a clean, accurate guitar or bass DI signal.

Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, all-new transparent low-noise Crystal pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the M-Track 2X2 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!

Professional Recording—Done!

Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more

At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz), high sensitivity (-38dB, 0dB = 1V/Pa @ 1kHz)) and accurate transient response, resulting in a microphone that captures even the most subtle nuances with ease, with minimal interference from unwanted ambient noise.

With the Nova Black condenser microphone, complicated setups are a thing of the past. Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.

Hear Every Detail

Professional recording demands uncompromised accuracy when it comes to monitoring. M-Audio’s HDH40 headphones combine premium transducer elements with a durable, rugged design to deliver superb sound reproduction and the outstanding acoustic isolation required in professional recording and monitoring environments. Long sessions are no problem! The plush padding reduces fatigue during extended use, and the over-the-ear design ensures that the HDH40 stays secured while you’re wearing them. With the HDH40, you can concentrate on what’s important—your production!

Pro Tools First Download

Pro Tools | First, the industry standard for recording software, is now included with M-Track C-Series Audio/MIDI interfaces, as well as our renowned CTRL, Code, Oxygen, Hammer and Keystation USB/MIDI keyboard controllers. This amazing audio recording software helps inspire any artist, traveling musician or singer-songwriter to create, record and share all of their ideas across the world at any time.

Pro Tools | First features Unlimited Busses, Elastic Time and Elastic Pitch, Offline Bounce and 1 GB of free cloud storage space for collaboration or accessing your projects from any computer anywhere that is connected to the internet.

This truly amazing software recording package is primed to get your ideas out of your imagination and amplified out into the world, enjoy!

Touch Loops

Chop up and mix 2 gigs of samples ranging from deep ambient synth pad loops to vintage drum one shots. These are all designed to inspire your music production and provide professional sounding samples that will shine in your mix. Touch Loops perfectly captures the tone and intensity of each sample, so they enhance and complement any song, wherever you use them. This incredible value can be found in your M-Audio account, ready to be downloaded and chopped to your liking!

Key Features


M-Track 2X2 (2-in/2-out USB/USB-C Audio Interface)

  • 24-bit/192kHz resolution for professional recording and monitoring
  • All new Crystal Preamps deliver pristine, transparent sound
  • Phantom Power (+48v ) accommodates all microphone types
  • Hi-Speed USB connection with USB/Direct balance knob for zero-latency monitoring
  • Includes both standard USB and USB-C connection cables
  • Dedicated XLR+¼” TRS combo input and ¼” instrument input
  • Rugged metal chassis; large central control for easy volume adjustment; table-top design provides easy access to critical controls
  • Stereo ¼” outs; ¼” headphone out with independent level control

HDH40 Closed Back Headphones

  • Premium build quality with 15Hz-22kHz frequency response
  • Powerful 40mm drivers with neodymium magnets offer an immersive audio experience
  • Plush leatherette cushioning with a comfortable over-the-ear design for fatigue free listening

Nova Black Condenser Microphone

  • Studio-grade large diaphragm condenser microphone with high sensitivity and low self noise captures every subtle nuance
  • Cardiod polar pattern eliminates unwanted ambient noise
  • Smooth, wide-range frequency response covers the entire audible spectrum


Premium Software Suite Included



AIR Creative FX Collection

The AIR Creative FX collection has been included as part of Pro Tools® since Version 8 and is considered the reference FX suite by some of the world’s most respected audio professionals. AIR FX has been featured in many of the last decade’s top film, game and music projects. Each plugin has been expertly designed with ease of use in mind and will ensure professional results each time. This collection of 20 legendary FX plugins now in AU/VST, includes all you need to start making professional mixes including delays, EQ, Reverb and much more.

AIR Strike

Strike is a dynamic drum and arranger instrument that features a world-class sample library and a hyper-realistic performance engine. Strike puts you in the producer’s chair, enabling you to create, control, and produce professional drum tracks with uncanny human realism. With its proprietary technology, Strike surpasses conventional MIDI programming and drumming sampling when it comes to computer-based playing, arranging, and mixing of drums.

AIR Xpand!2

Xpand!2 is a multi-timbral workstation offering four active sound slots, or parts, per patch. Each part is provided with its own MIDI channel, Note Range (Zone), Mix, Arpeggiation, Modulation, and effects settings—an excellent method for creating individual parts. Using everything from wavetables and FM synthesis to sample playback, the expert sound design team at Air Music Tech has carefully created thousands of ready-to-play Xpand!2 patches.

AIR Mini Grand

Mini Grand is a simple to use yet powerful virtual piano instrument with seven different acoustic piano sounds to suit a broad range of musical styles and production needs. Combining premium quality piano samples, innovative re-pedaling technology, built-in room simulation and equal & stretched tuning, Mini Grand is the go-to plugin for authentic, emotive piano sounds.

Technical Specs



Mic Input 1 (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range 104 dB (A-weighted)
Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)
THD+N 0.003%
Preamp EIN -128 dBu (max gain, 150 Ω source, A-weighted)
Max Input Level +1.5 dBu
Gain Range 55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.003%
Max Input Level 16 dBu
Gain Range 55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range 100 dB (A-weighted)
Signal-to-Noise Ratio 102 dB (+ 4 dBu, A-weighted)
THD+N 0.004%
Max Input Level 6 dBu
Input Impedance 1 MΩ
Gain Range 24 dB

Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio 102 dB (A-weighted)
THD+N 0.005%
Max Output Level +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N 0.005%
Output Impedance 10 Ω
General
Power USB-bus-powered
Dimensions (width x depth x height) 6.0” x 2.8” x 7.8” (15.2 cm x 7.1cm x 19.8 cm)
NOVA Black Microphone
Type Back Electret condenser microphone
Element 18 mm pure aluminum diaphragm capsule
Polar Pattern Cardioid
Frequency Response 20 Hz – 20 kHz
Sensitivity -38 dB (0 dB = 1 V/Pa @ 1 kHz)
Rated Impedance 200Ω
Phantom Power Required +48 V
S/N Ratio 77 dB
Current Consumption 3 mA
HDH40 Headphones
Acoustic Design Dynamic, Closed
Driver 40 mm, neodymium
Frequency Response 15 Hz – 22 kHz
Sensitivity 95 dB ±3 dB
Rated Impedance 32Ω
Earpad Leatherette
Cable Length 9.8 ft. / 3 m
